Solar Water Pump

Water output figures are on a clear sunny day with 3 times tracking of SPV panel, under “Average Daily Solar Radiation” condition of 7.15 KWh/sq.m on the surface of PV Array (i.e. coplanar with PV module) 2 Standard Test Condition : AM=1.5, E=1000W/m , Cell Temperature : 25°C

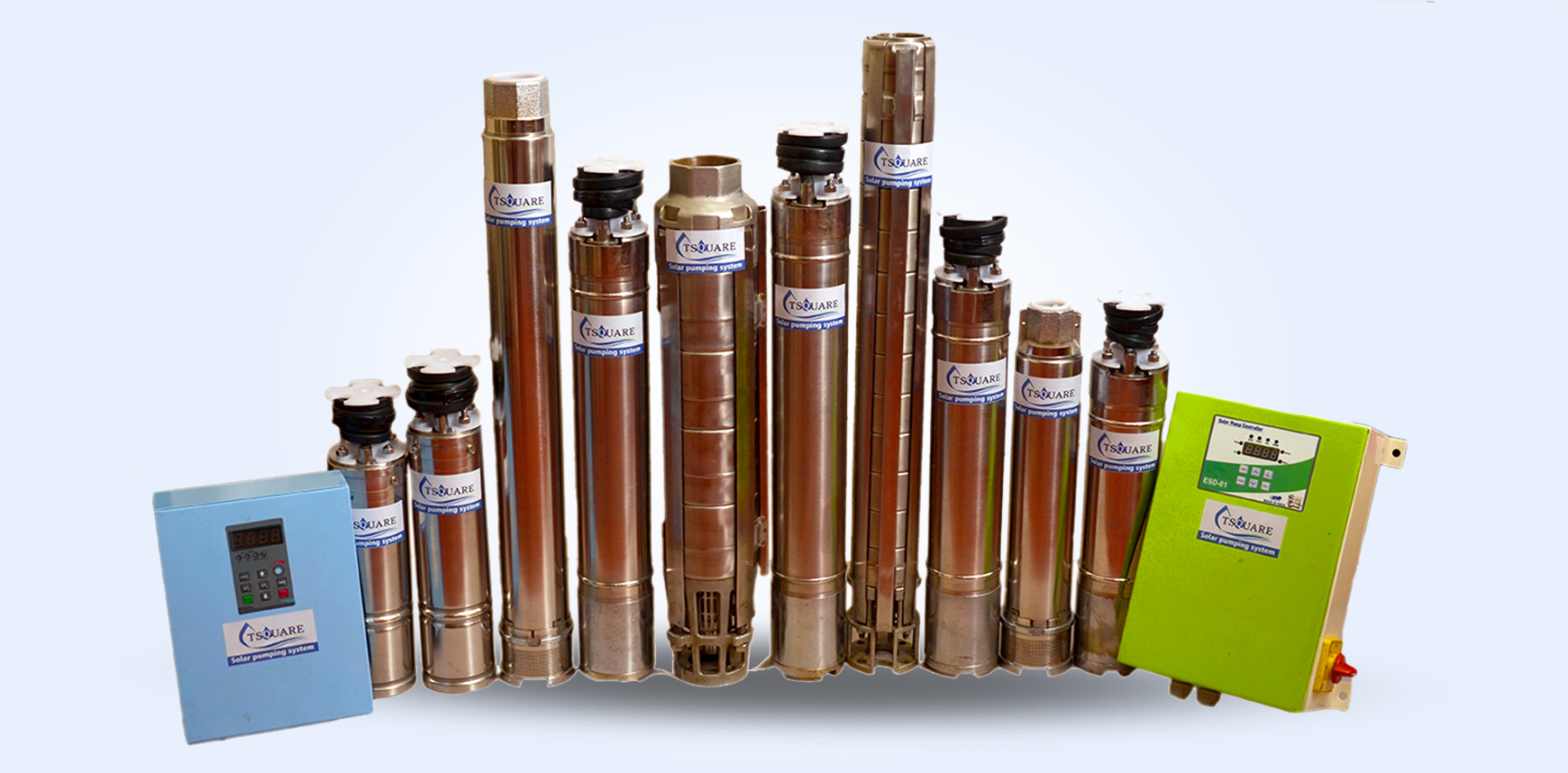

The all new OSSL series of Solar Submersible Pumpset has been introduced by Tsquare Green Energy, which is a state of art technology product designed to provide eco-friendly and energy efficient solution. Tsquare Green Energy OSSL Series Stainless Steel Submersible pumpset is more suitable for Solar Pumping system. Our Submersible water pump is anti-corrosion in nature and provides high wear resistance. It reduces the running costs due to its high pumping efficiency and longevity. It can work continuously for a longer period of time without any trouble which results in high reliability and provide best results.

Operating Conditions :

• Max. Liquid Temp. - 45°C
• Water ph Value - 6.5-8.0
• Max.Quantity of Sand - 50gm/m³
• Pumped liquid - Clean Water free from solids
• chemically natural & close to
• haracteristics of water.
• Start /Hours - Max.30 at regular interval

Suitable for day time Irrigation, continuous output for 6-8 hours in a day. We offer Submersible pumps with energy-efficient duty point ranging from 1-50 m³/h. Complete range of pumps & motors which as a standard are made completely of stainless steel AISI-304. This provide for good wear resistance and a reduced risk of corrosion when pumping normal cold water with a minor content of chloride. Stainless Steel means less weight which facilitates easy handling of pumps and results in low equipment and installation cost and service time. In addition pumps will be as new even after long application tenure due to the high wear resistance of stainless steel. OSSL series contribute to clean & pollution free energy without any harm to nature.
