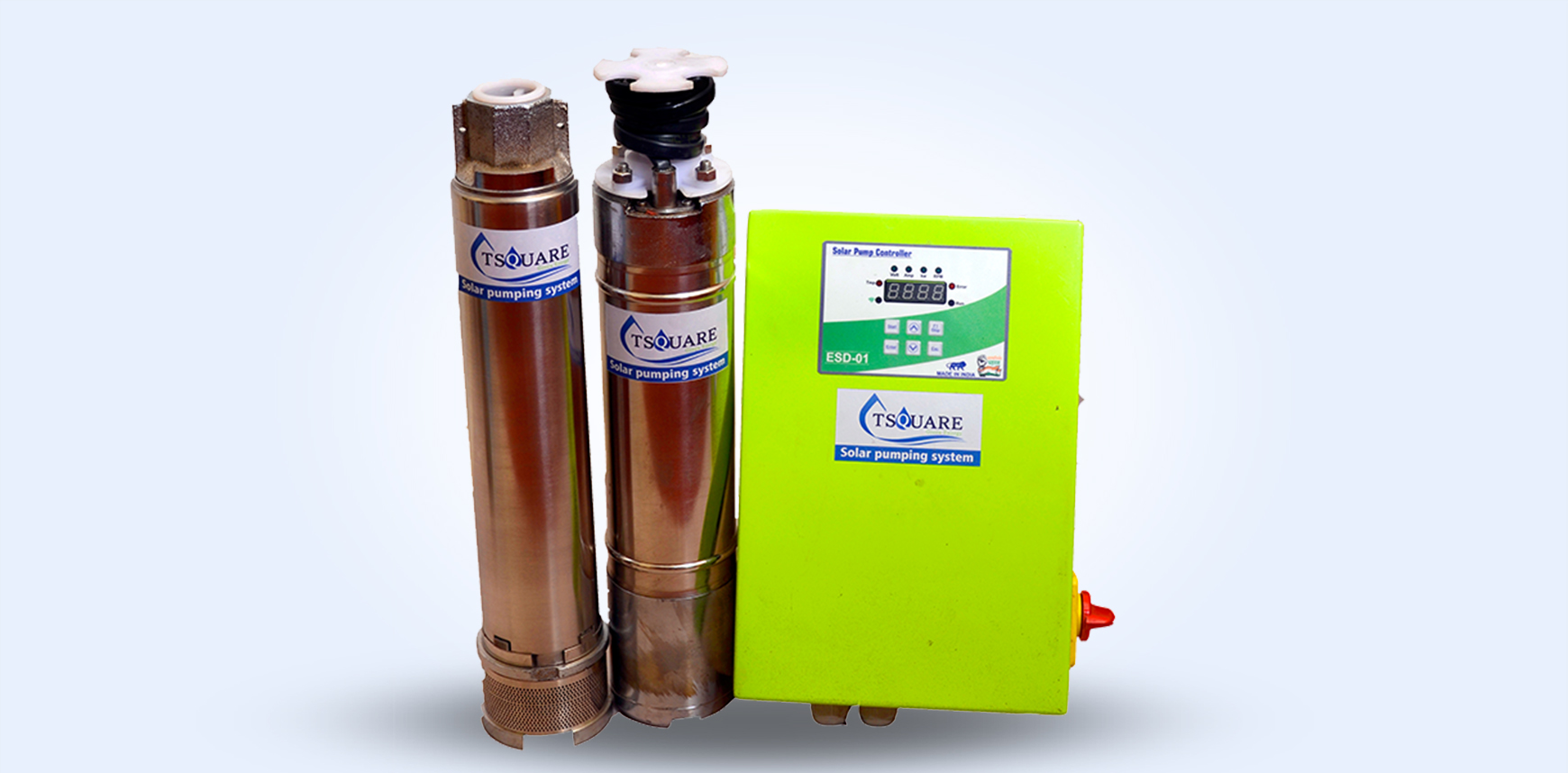

Solar Submersible Pumps For Irrigation

Solar Submersible Pumps For Irrigation

Water output figures are on a clear sunny day with 3 times tracking of SPV panel, under “Average Daily Solar Radiation” condition of 7.15 KWh/sq.m on the surface of PV Array (i.e. coplanar with PV module) 2 Standard Test Condition : AM=1.5, E=1000W/m , Cell Temperature : 25°C

Model Array Rang(Wp) Motor Power SPV Array(VOC) Input Voltage(Vmp) Pump Type Discharge(LPD) Discharge Calculated
at (m)
Shut off Head(m)
TMV1200 1200 750W (1 HP) 148-222 129-194 TM010H020
TM010H030
TM010H050
TM010H070
TM010H100
60000
45600
25200
16800
11400
20
30
50
70
100
45
45
70
150
150
TMV1800 1800 1500W (2 HP) 222-326 194-284 TM020H030
TM020H050
TM020H070
TM020H100
68400
37800
25200
17100
30
50
70
100
45
70
150
150
TMV3000 3000 2250W (3 HP) 178-266 155-232 TM030H020
TM030H030
TM030H050
TM030H070
TM030H100
150000
114000
69000
45000
28500
20
30
50
70
100
45
45
70
150
150
TMV5000 4800 3750W (3 HP) 296-407 258-355 TM050H020
TM050H030
TM050H050
TM050H070
TM050H100
240000
168000
110400
72000
50400
20
30
50
70
100
45
45
150
150
TMAV7500 7500 5625W (7.5 HP) 484-530 390-432 TM075H050
TM075H070
TM075H100
155250
101250
70875
50
70
100
70
150
150
TMAV10000 10000 7500W (10 HP) 616-704 504-576 TM100H050
TM100H070
TM100H100
207000
135000
94500
50
70
100
70
150
150
