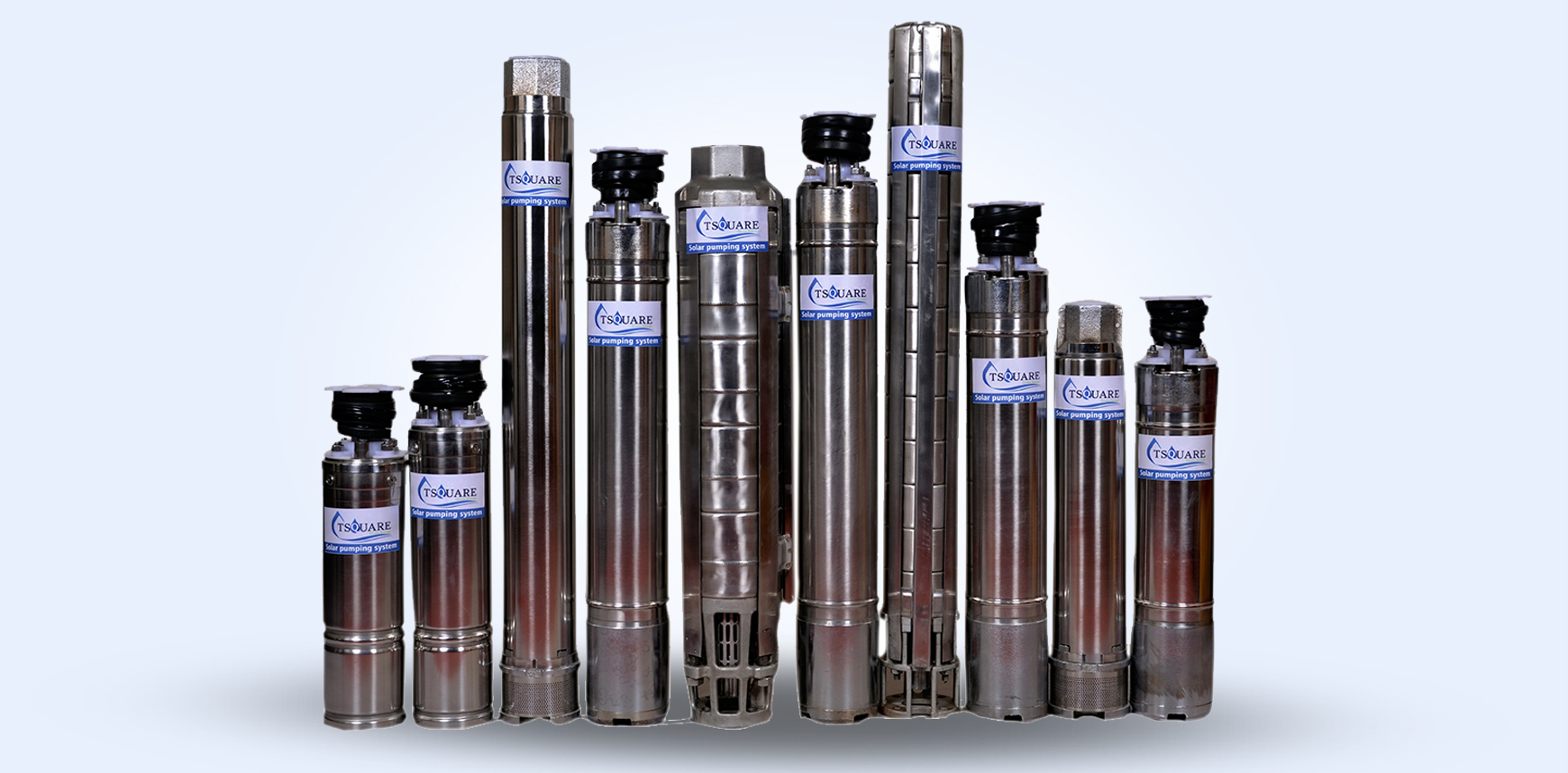

AC Solar submersible Pump

Water output figures are on a clear sunny day with 3 times tracking of SPV panel, under “Average Daily Solar Radiation” condition of 7.15 KWh/sq.m on the surface of PV Array (i.e. coplanar with PV module) 2 Standard Test Condition : AM=1.5, E=1000W/m , Cell Temperature : 25°C

• Dual mode operation: can be operating on electric power at night and solar power at day time.
• Inbuilt MPPT tracking facility to get maximum power output from the solar Array.
• Higher Efficiency
• Higher life cycle
• Sensor less Dry Running Protection
• Higher Temperature Protection
• Reverse Polarity Protection
• Tank over flow protection
• Over voltage protection
• Under voltage protection
• Over Load Protection
• High Durable and Reliable

Model	Array Rang(Wp)	Motor Power	SPV Array(VOC)	Input Voltage(Vmp)	Pump Type	Discharge(LPD)	Suction Head(m)	Discharge Calculated at (m)	Shut off Head(m)
TMD900	900	750W (1 HP)	126-148	110-129	TM010H010	99000	07	10	12
TMD1800	1800	1500W (2 HP)	222-326	194-284	TM020H010	198000	07	10	12
TMD3000	2700	2200W(3 HP)	250-450	180-400	TM030H010 TM030H020	297000 148500	07 07	10 20	12 25
TMD5000	4800	3750W (3 HP)	400-470	258-355	TM050H010 TM050H020 TM050H030	528000 264000 182400	07 07 07	10 20 30	12 25 45
