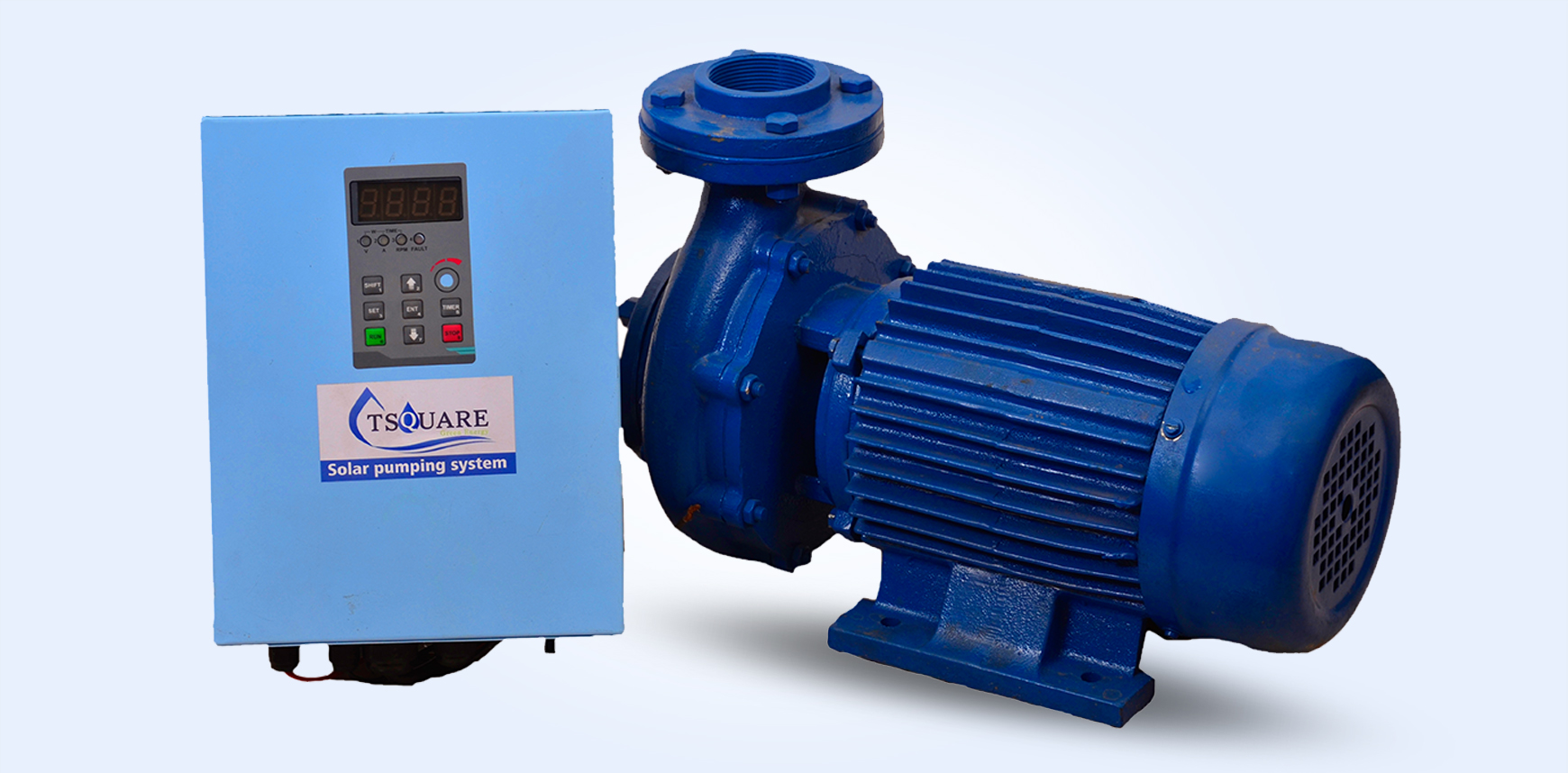

Solar Surface Pumps

Water output figures are on a clear sunny day with 3 times tracking of SPV panel, under “Average Daily Solar Radiation” condition of 7.15 KWh/sq.m on the surface of PV Array (i.e. coplanar with PV module) 2 Standard Test Condition : AM=1.5, E=1000W/m , Cell Temperature : 25°C

Model	Array Rang(Wp)	Motor Power	SPV Array(VOC)	Input Voltage(Vmp)	Pump Type	Discharge(LPD)	Suction Head(m)	Discharge Calculated at (m)	Shut off Head(m)
TMD900	900	750W (1 HP)	126-148	110-129	TM010H010	99000	07	10	12
TMD1800	1800	1500W (2 HP)	222-326	194-284	TM020H010	198000	07	10	12
TMD3000	2700	2200W(3 HP)	250-450	180-400	TM030H010 TM030H020	297000 148500	07 07	10 20	12 25
TMD5000	4800	3750W (3 HP)	400-470	258-355	TM050H010 TM050H020 TM050H030	528000 264000 182400	07 07 07	10 20 30	12 25 45
