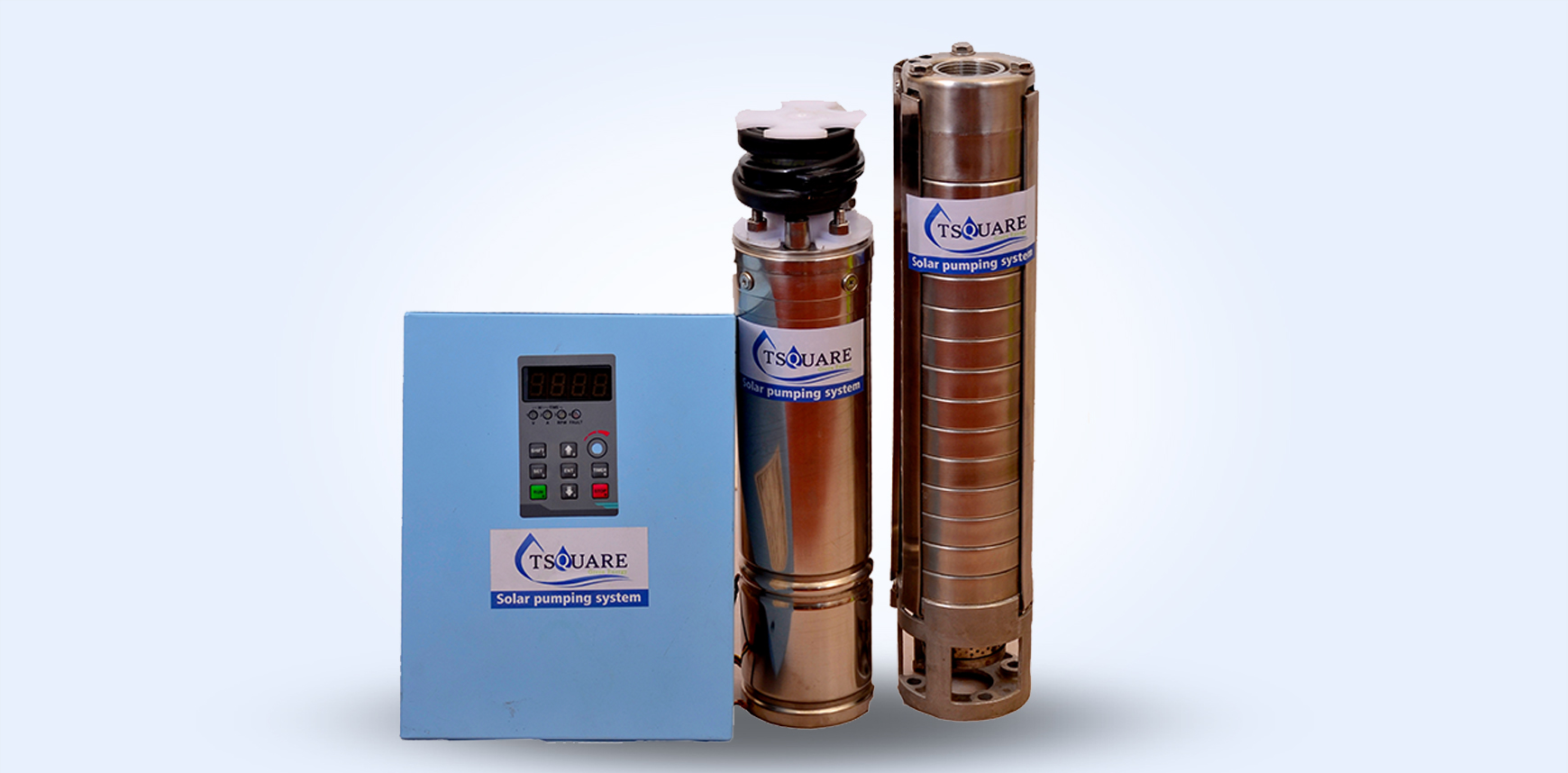

Solar Submersible Pumps for Drinking Water

Solar Submersible Pumps for Drinking Water

Water output figures are on a clear sunny day with 3 times tracking of SPV panel, under “Average Daily Solar Radiation” condition of 7.15 KWh/sq.m on the surface of PV Array (i.e. coplanar with PV module) 2 Standard Test Condition : AM=1.5, E=1000W/m , Cell Temperature : 25°C

Model Array Rang(Wp) Motor Power SPV Array(VOC) Input Voltage(Vmp) Pump Type Discharge(LPD) Discharge Calculated
at (m)
Shut off Head(m)
TMD500 500 375W(0.5 HP) 67-96 58-84 TM005H010
TM005H020
TM005H030
20000
10000
6000
10
20
30
12
25
45
TMD500 500 375W(0.5 HP) 67-96 58-84 TM005H030
TM005H060
13400
6700
30
60
45
90
TMD750 750 560W(0.75 HP) 96-126 84-110 TM007H030
TM007H060
TM007H090
16700
8400
4200
30
60
90
45
90
120
TMD900 900 750W(1 HP) 126-148 110-129 TM010H030
TM010H060
TM010H090
20000
10000
5000
30
60
90
45
90
120
